Dryer Fabric Cleaner
Keep the breathability of dryer fabric
Efficient Cleaning System without Shut-down
Constantly Keep the Dryer Fabric Clean
Paper grade:
Basis weight (gsm):
Paper width at pope reel (mm):
PM design speed (m/min):
PM operation speed (m/min):
Dryer fabric width (mm):
Centre to Centre (C/C) distance (mm):
How many pieces of dryer fabric to be cleaned?
Dryer fabric position that to be cleaned:

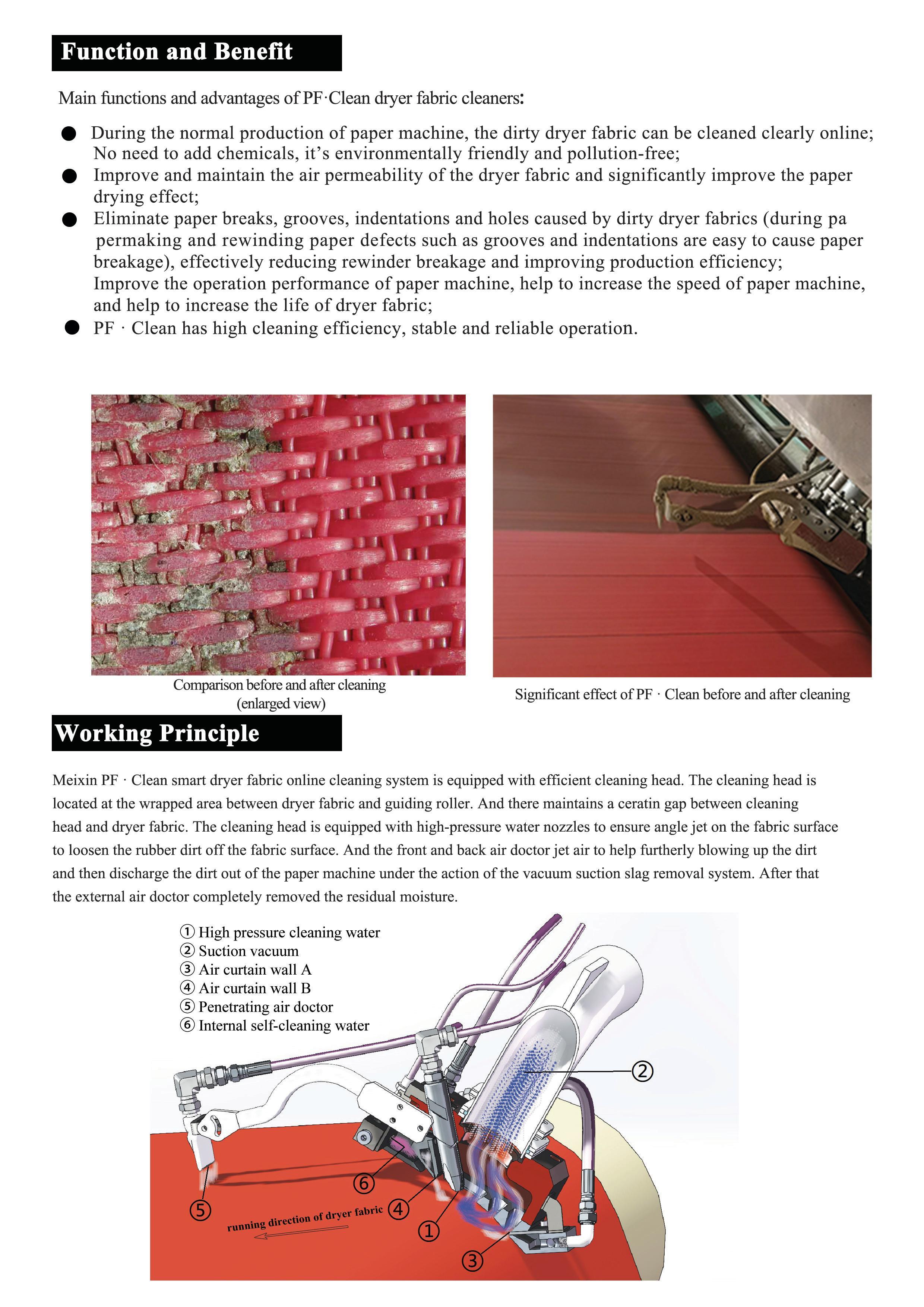

Functions and Benefits
● In the normal production and operation of the paper machine, the dirty dryer fabric can be cleaned clearly online
● No need to add chemicals, environmentally friendly and pollution-free
Improve and maintain the air permeability of the dryer fabric and significantly improve the paper drying effect
● Eliminate paper breaks, grooves, indentations and holes caused by dirty dryer fabrics(during paper making and rewinding paper defects such as grooves and indentations are easy to cause paper breakage), effectively reducing rewinder breakage and improving production efficiency
● Improve the operation performance of paper machine, help to increase the speed of paper machine, and help to increase the life of dryer fabric
● PF · Clean has high cleaning efficiency, stable and reliable operation.
Working Principle

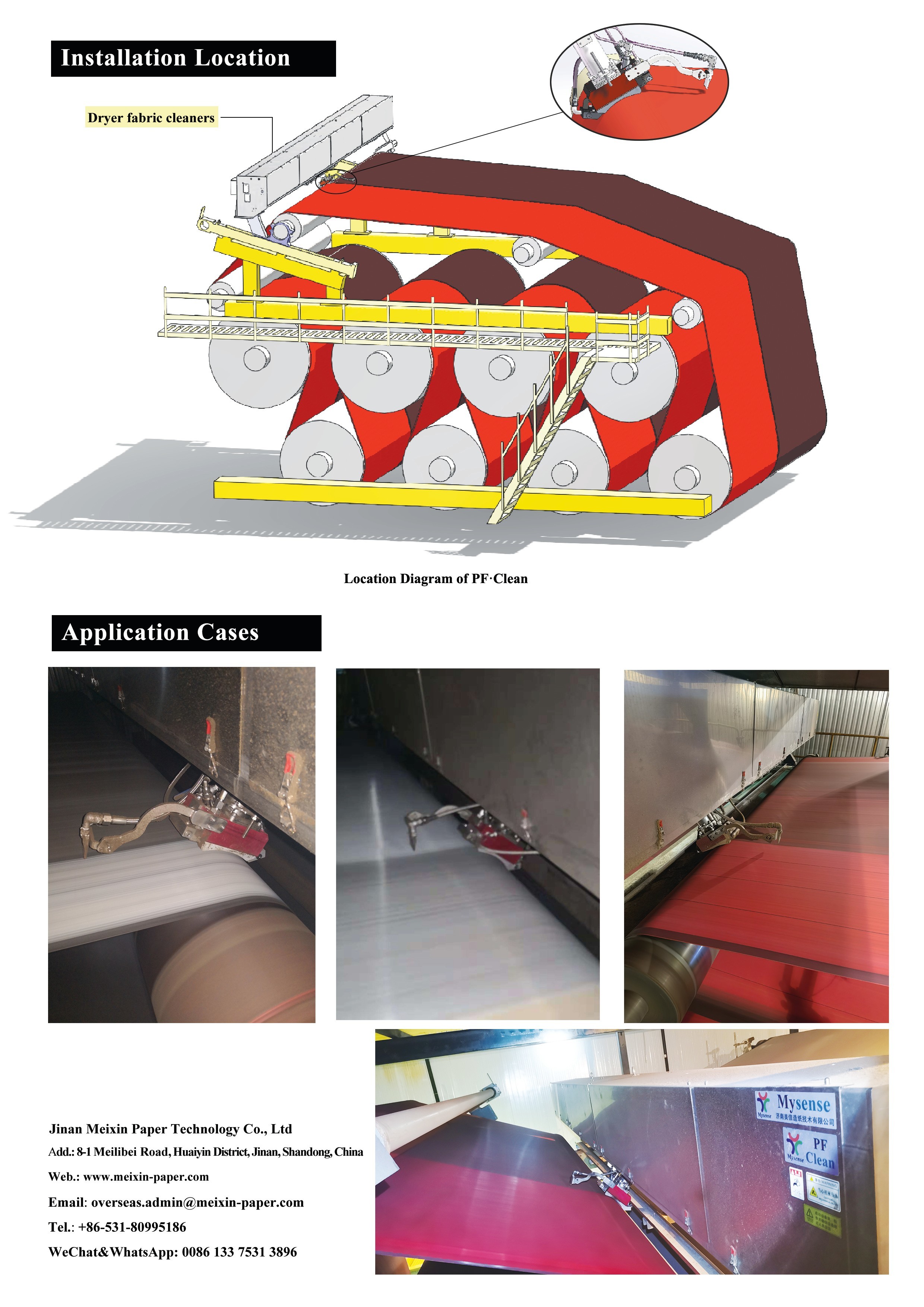

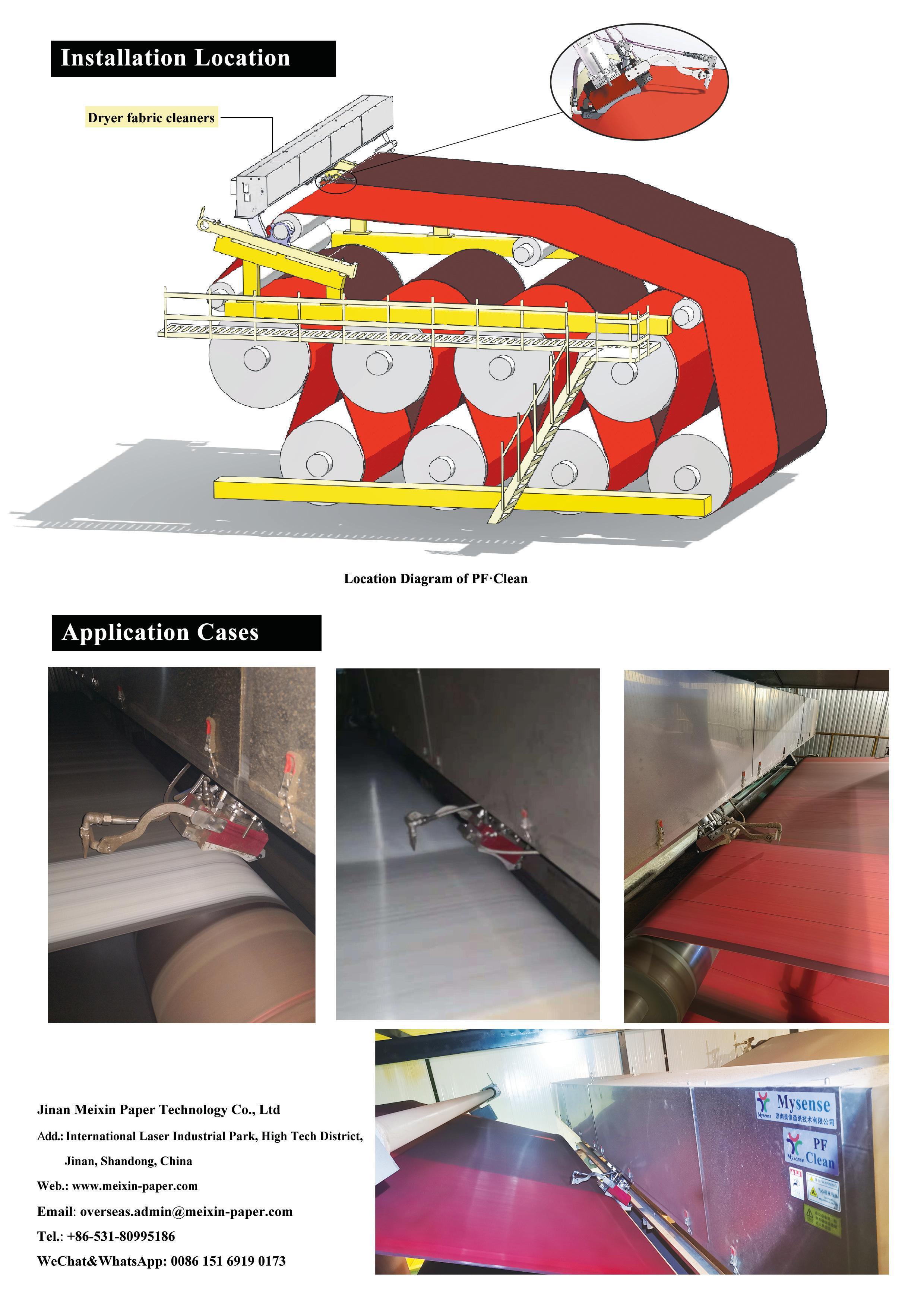

Meixin PF · Clean smart dryer fabric cleaning system without shut-down is equipped with efficient cleaning head. The cleaning head is located at the wrapped area between dryer fabric and guiding roller. And there maintains a certain gap between cleaning head and dryer fabric.

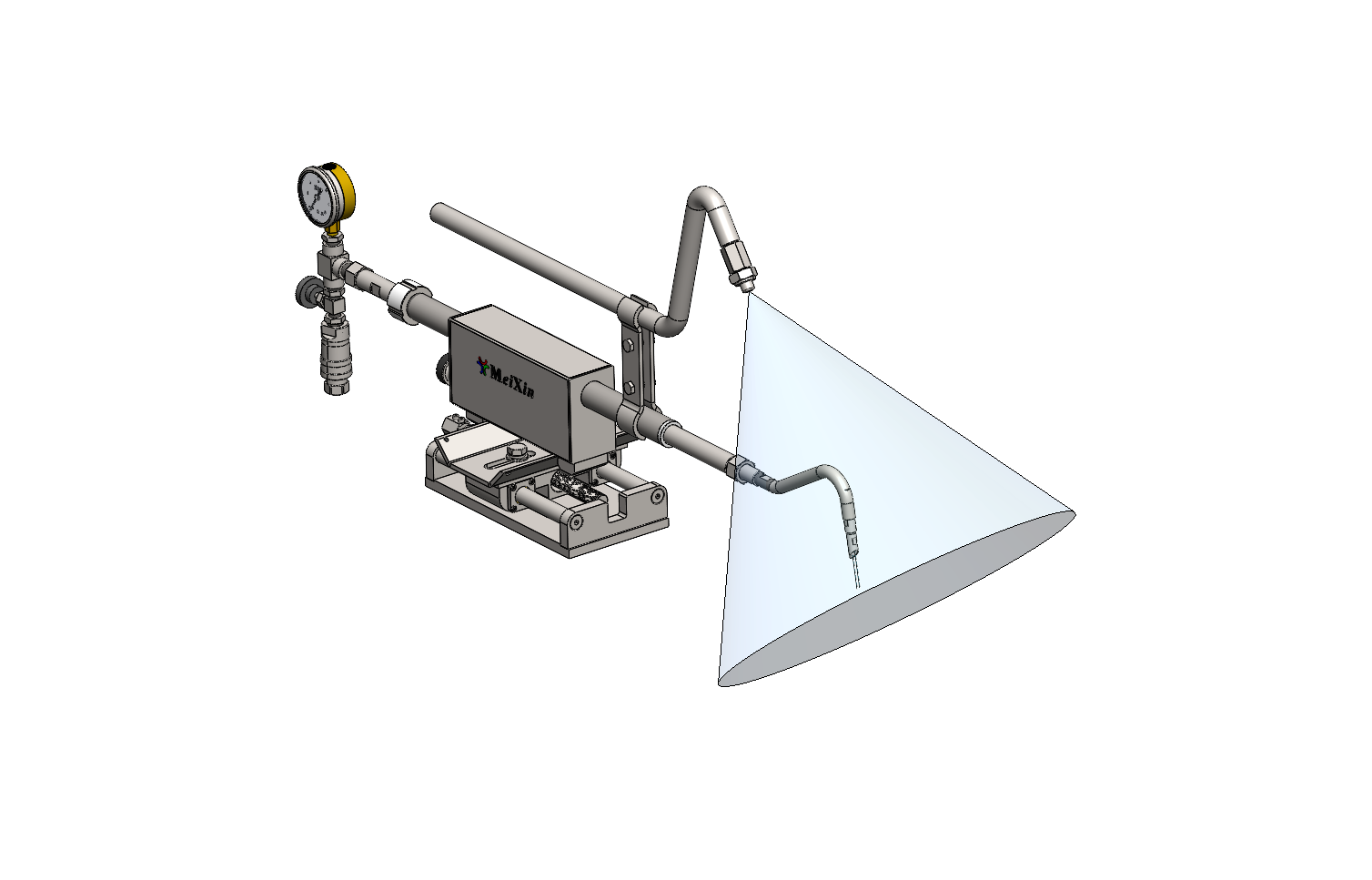

The cleaning head is equipped with high-pressure water nozzles to ensure angle jet on the fabric surface to loosen the rubber dirt off the fabric surface. And the front and back air doctor jet air to help further blowing up the dirt and then discharge the dirt out of the paper machine under the action of the vacuum suction slag removal system. After that the external air doctor completely removed the residual moisture.
