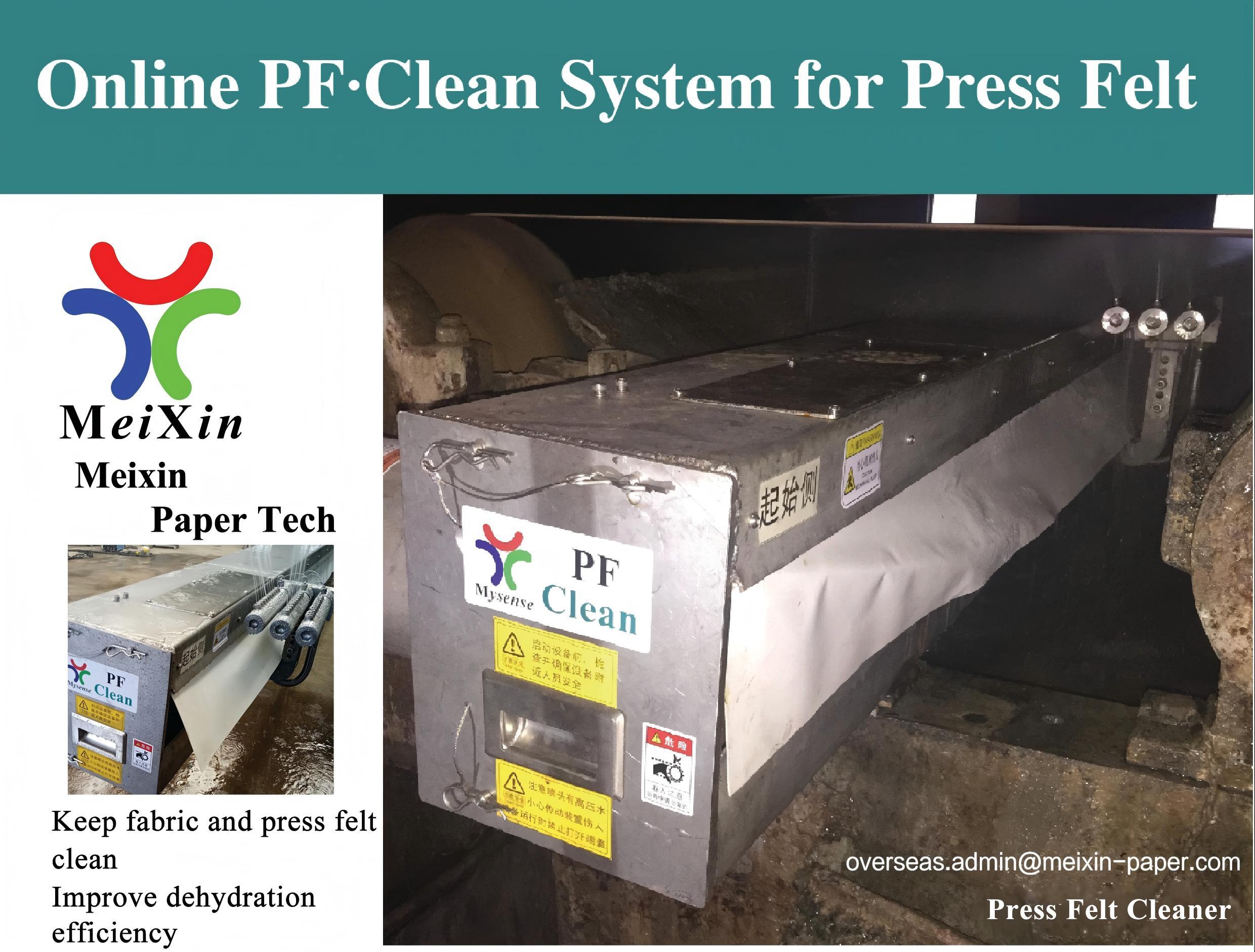

Cleaning System for Forming Fabric, Press Felt, Vacuum Roller

Keep the wet fabric clean

Improve dehydration efficiency

Keep the Wet Fabric Clean

Effectively Save Water and Electricity

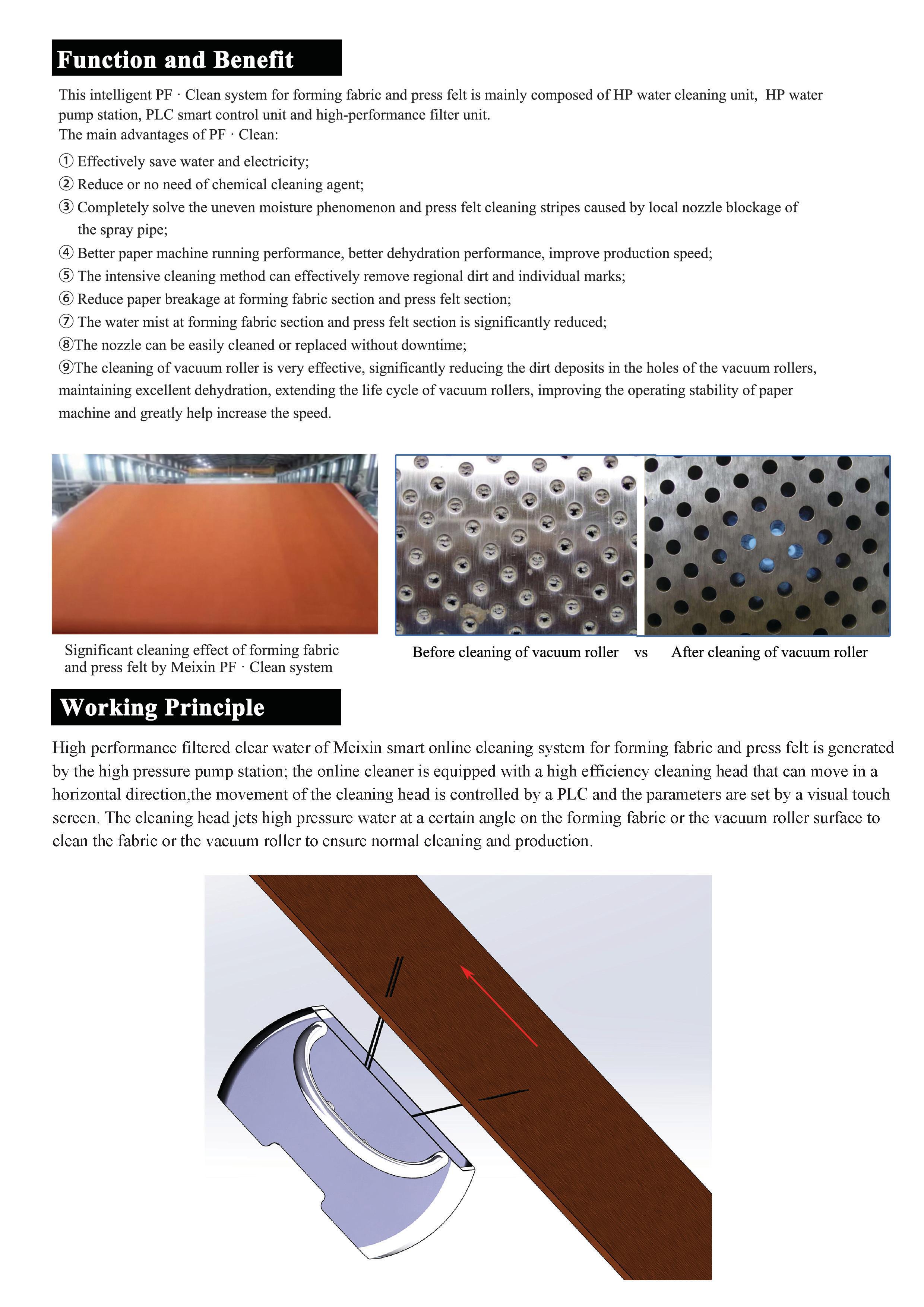

Functions and Benefits

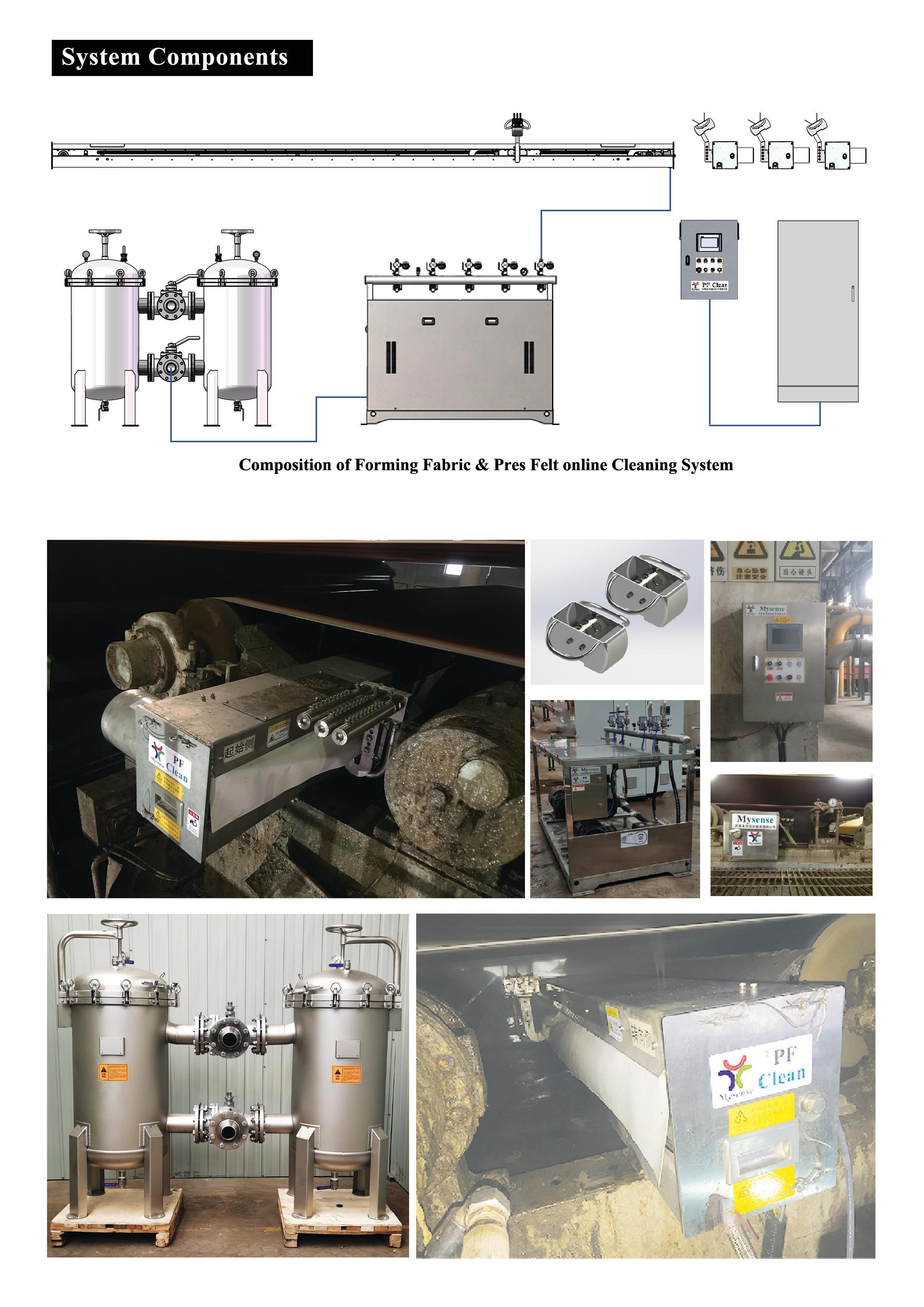

PF · Clean smart wet fabrics online cleaning system is mainly composed of high-pressure water cleaning unit, HP water pump station, PLC smart control unit, and high-performance filter unit.

The main advantages of PF · Clean:

① Effectively save water and electricity;

② Reduce or no need of chemical cleaning agent;

③ Completely solve the uneven moisture phenomenon and wool cleaning stripes caused by local nozzle blockage of the spray pipe;

④ Better paper machine running performance, better dehydration performance, help to improve production speed;

⑤ The intensive cleaning method can effectively remove regional dirt and individual marks;

⑥ Reduce paper breakage in the mesh and press part;

⑦ The water mist in the mesh pressure part is significantly reduced;

⑧The nozzle can be easily cleaned or replaced without downtime;

⑨The cleaning of the vacuum rolls is very effective, significantly reducing the dirt deposits in the holes of the vacuum rolls, maintaining excellent dehydration, extending the life cycle of the vacuum rolls, improving the operating stability of the paper machine and greatly helping to increase the speed.

Working Principle

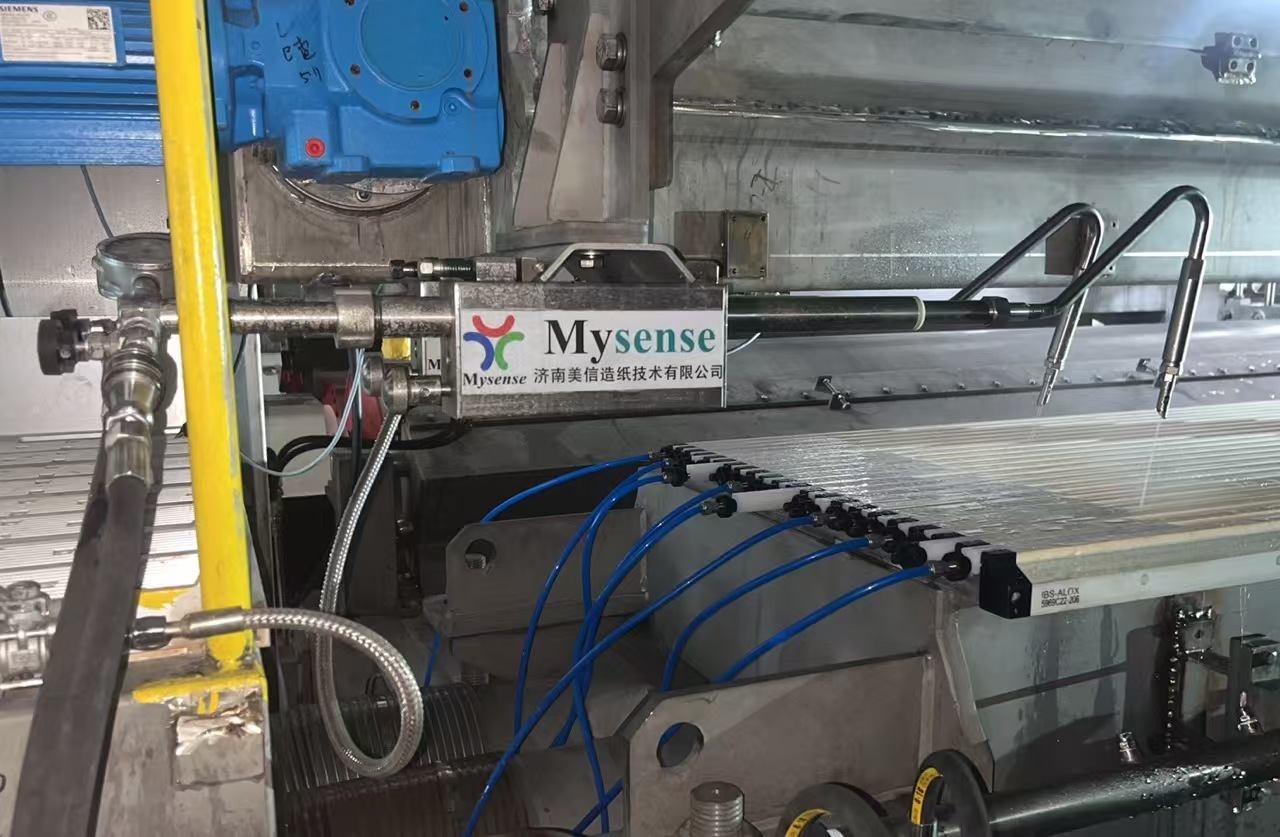

Meixin smart wet fabrics  online cleaning system: After high performance filtration of cleaning water, high pressure water is generated by the high pressure pump station; the in-line cleaner is equipped with a high efficiency cleaning head that can move in a horizontal direction,the movement of the cleaning head is  controlled by a PLC and the parameters are set by a visual touch screen. The cleaning head jets high pressure water at a certain angle on the paper fabric or the vacuum roll surface to clean the fabric or the vacuum roll to  ensure normal cleaning and production.
