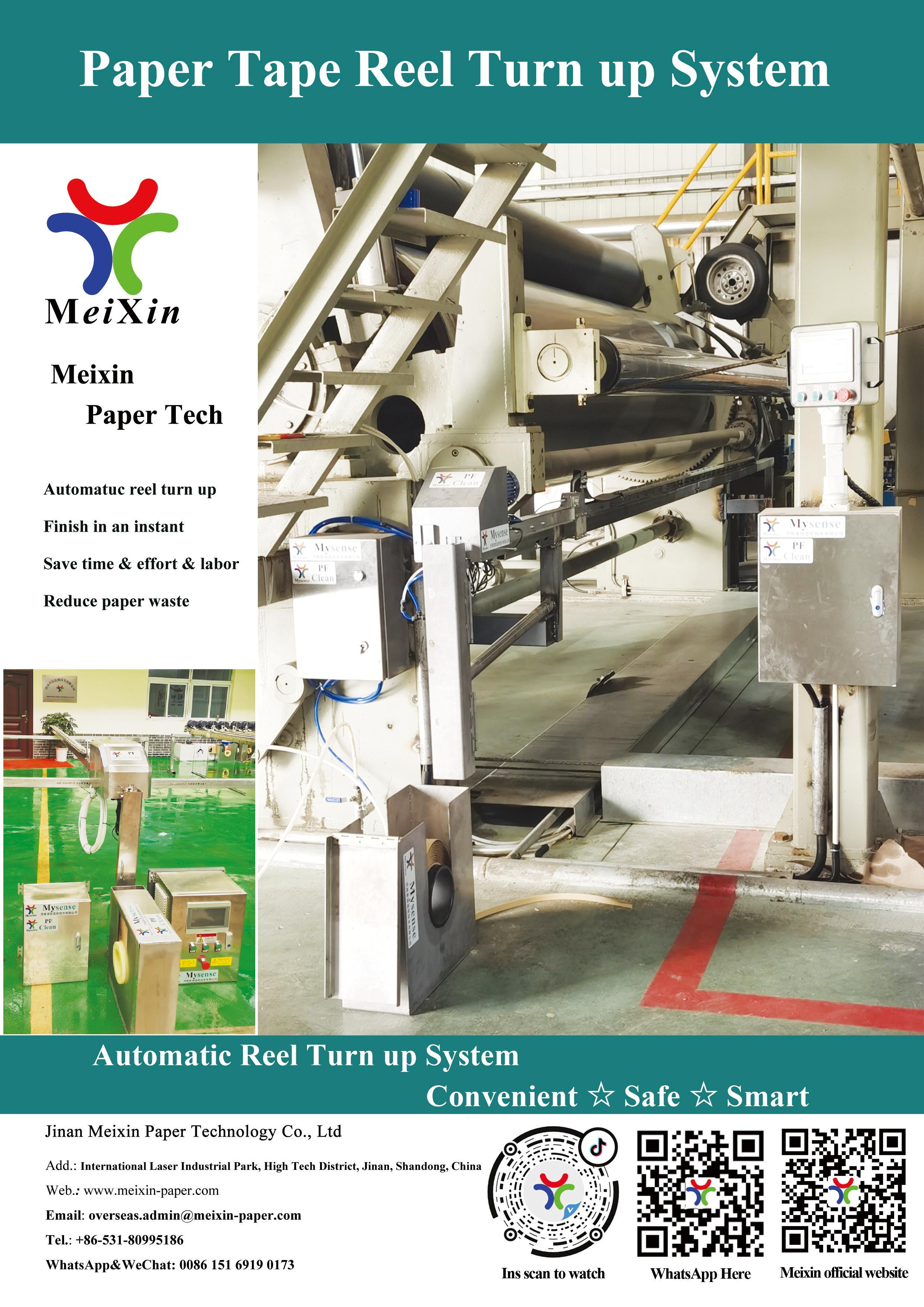

Paper Tape Reel Turn up System

• Paper Tape Automatic Reel Turn up
• Reel turn up is finished in an instant Save time, effort and labor Reduce paper waste
• Paper Tape Automatic Reel Turn up System
• Convenient  Safe  and  Smart

Function Benefits

With the increasing production capacity of paper machines and the faster and faster speed, the auto- matic reel turn up of paper rolling machines has become very critical, and it is inevitable to choose a set of automatic roll changing equipment. Meixin paper tape automatic reel turn up equipment has high success rate of stable and safe paper changing and low single input cost, which is suitable for almost all paper machines. The benefits of Meixin paper tape automatic reel turn up after using:

1. The automatic reel turn up method ensures the safety of operators and avoids workers' body   being injured by the reeling machine;

2. Very short reel turn up time, transfer the paper web to the new paper reel without wrinkles, with only a very small amount of paper waste or no paper waste, thereby increasing the output;

3. Very high reel turn up success rate > 99%;

4. It can realize automatic reel turn up, the operation is very simple, and the equipment can be operated well without experience;

5. The annual output can be increased 0.5% - 3%, and one-time investment can continously to obtain returns;

6. Suitable for almost all paper machines and all paper thickness.

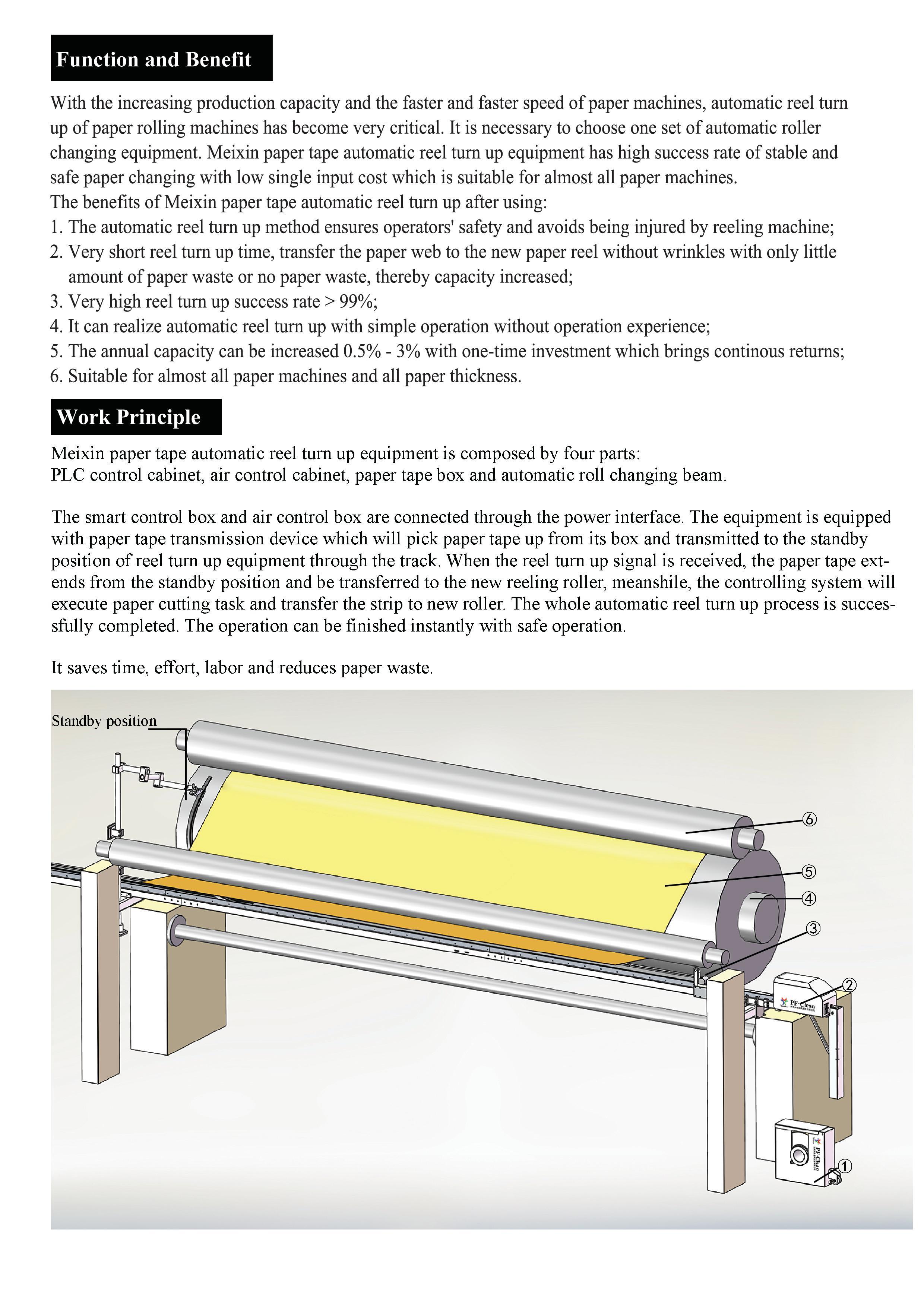

Work Principle

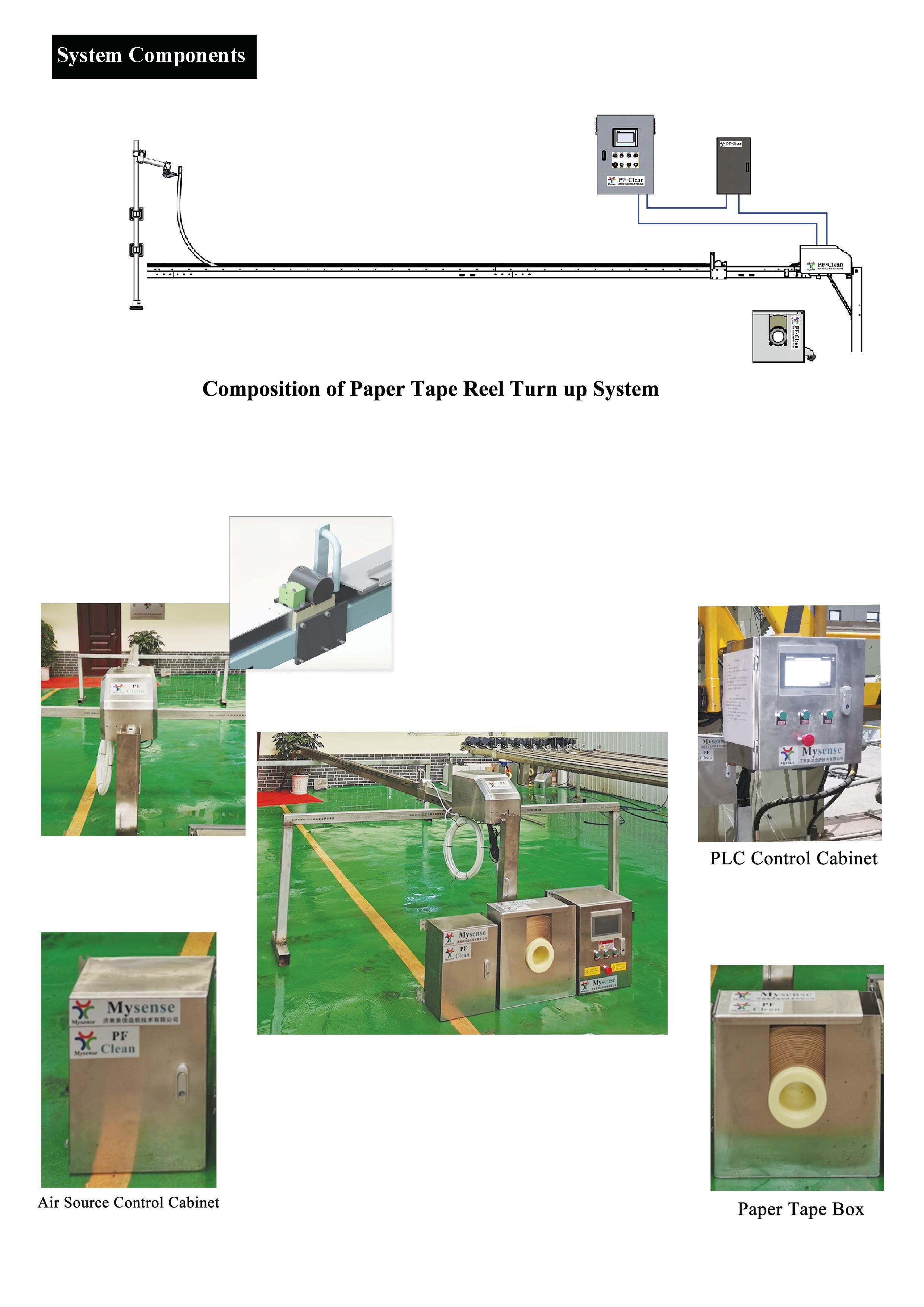

Meixin paper tape automatic reel turn up equipment is composed of four parts: PLC control cabinet, air control cabinet, paper breaking tape box, and automatic paper changing beam. The smart control box and pressure control air box are connected through the power interface. The equipment is equipped with a paper tape transmission device. The paper tape is picked up from the carton and transmitted to the standby position of reel turn up equipment through the track. When the reel turn up signal is received, the paper tape extends from the standby position and is transferred to the new reeling roller. At the same time, the sensor is operated to synchronise the transfer of the sheets to the new roll and the automatic roll change is successfully completed. The reel turn up can be finished instantly, the operation is safe. It saves time, effort and labor, and reduces paper waste.
