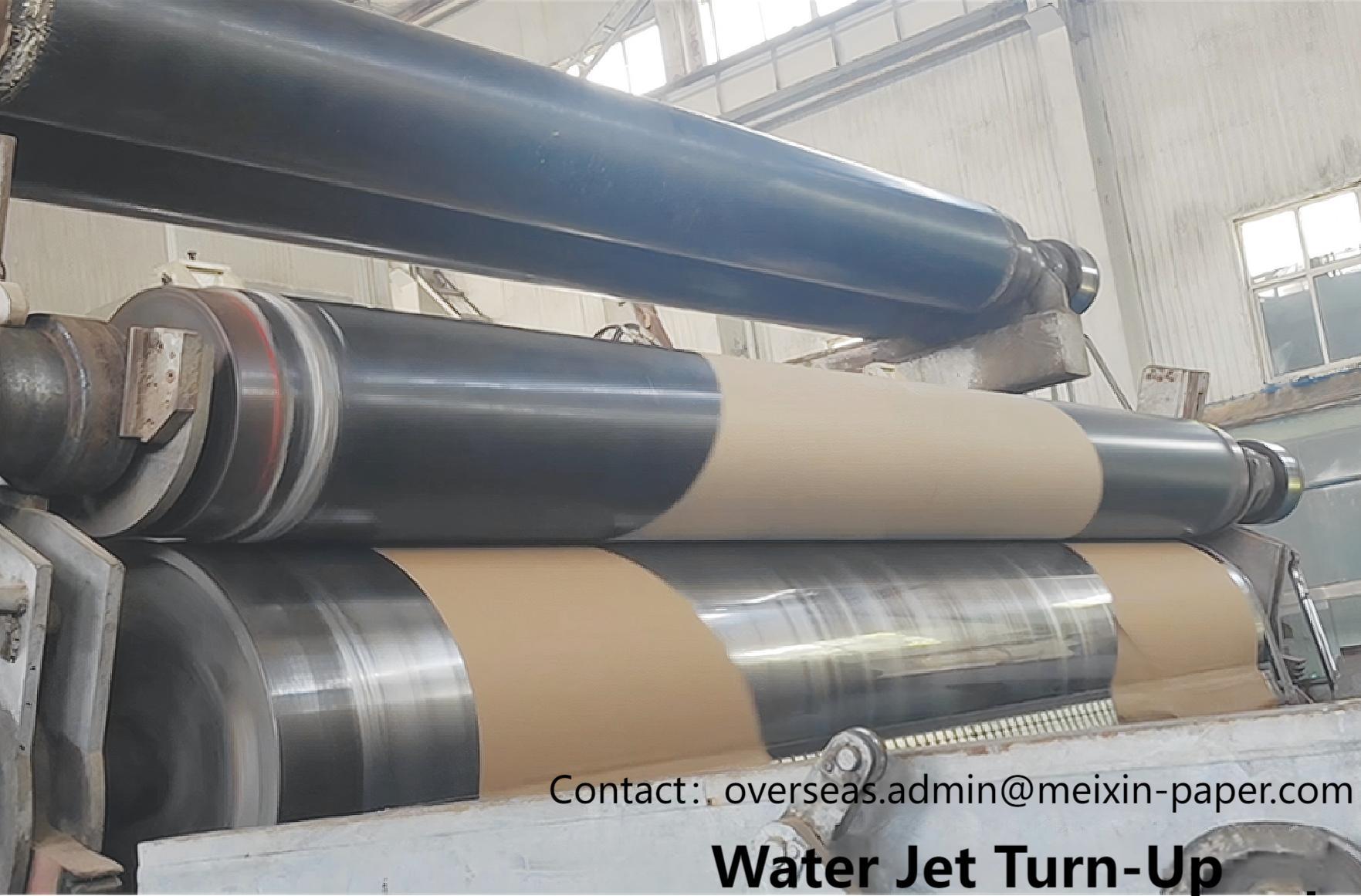

What are the working principle of the Water Jet Turn-Up System M-jet?

Published on:

2025-08-08 13:45

The M-JET bean of Meixin HP water jet turn up system is installed on the upper part of the paper reeling m- achine. The supor HP water generating system generates HP water, and the supor HP nozzle ejects high qua- lity paper cutting trim.The beam is equipped with 2 sets of paper cutting trim to move at high speed to cut o- ut the paper tip, at the same time, an appropriate amount of glue is sprayed on the paper tip, which is pasted on it when passing through the new paper roll to broadenthe entire paper surface to achieve high quality re- winding.

Previous Article

What are the advantages of the Paper Tape Reel Turn Up System?

What are the advantages of the Water Jet Turn-Up System M-jet？

Next Article

Previous Article

What are the advantages of the Paper Tape Reel Turn Up System?

Next Article

What are the advantages of the Water Jet Turn-Up System M-jet？

Latest News

The Shanghai World Expo Exhibition Hall(CIPTE)

The Shanghai World Expo Exhibition Hall(CIPTE)

The Shanghai Exhibition is one of the largest industrial trade exhibitions,which will be held from August 13th to 15th.

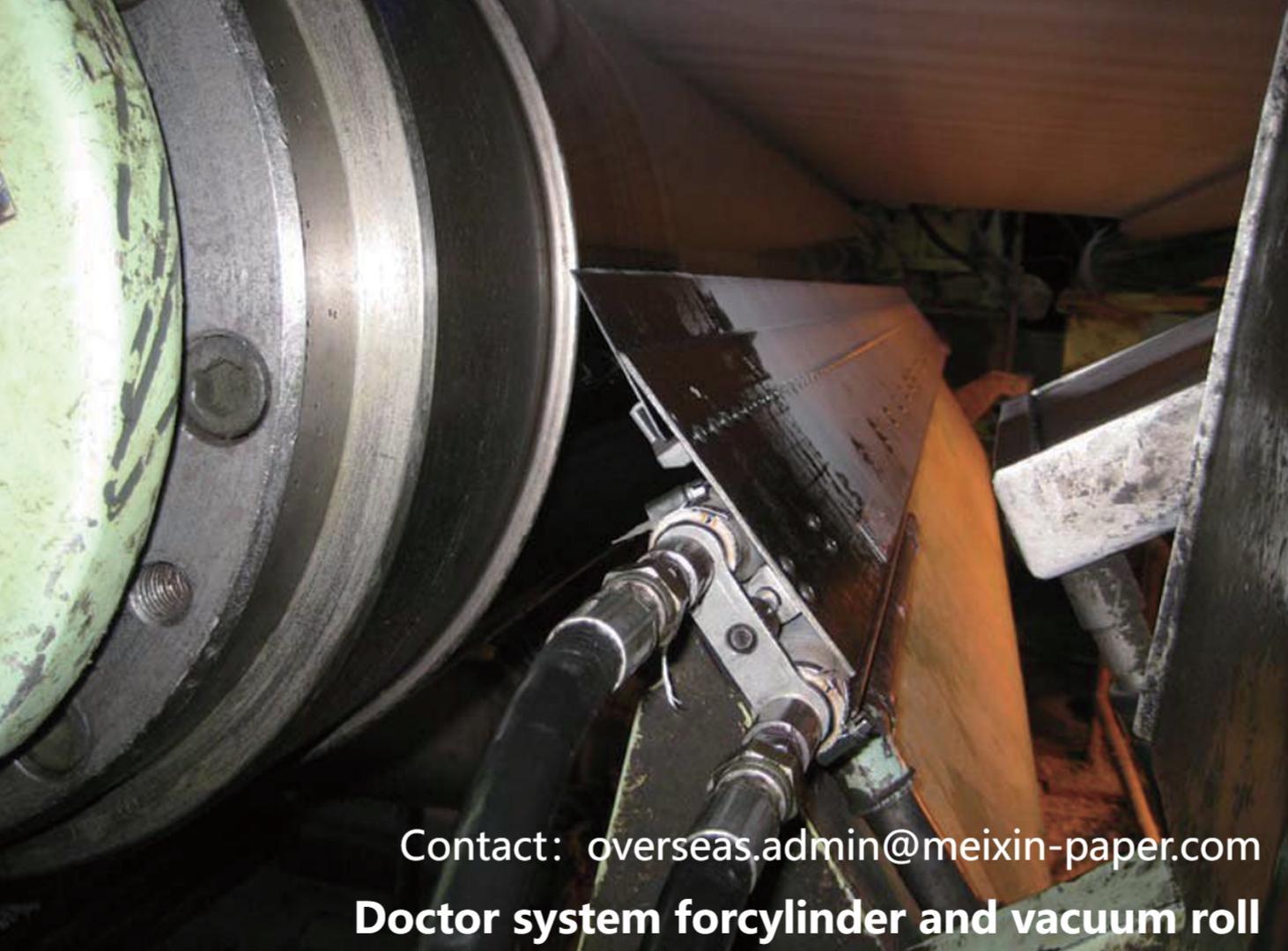

What are the working principle of Doctor System Forcylinder And Vacuum Roll?

What are the working principle of Doctor System Forcylinder And Vacuum Roll?

1. Shower contact point； 2. Cleaning shower located between doctor blades.

What are the advantages of the Doctor System Forcylinder And Vacuum Roll?

What are the advantages of the Doctor System Forcylinder And Vacuum Roll?

1. Keep the surface of drying cylinder and vaccum roller clean； 2. Reduce paper defects ang paper breaks caused by the accumulation of dirt on the surface of the drying cylinder； 3. The DST scraper has seamless contact with the roller surface and the clean sueface is uniform； 4. Effectively improve the stability of paper machine operation； 5. Improve paper quality and production capacity； 6. Doctor blades changing is convenient and safe.

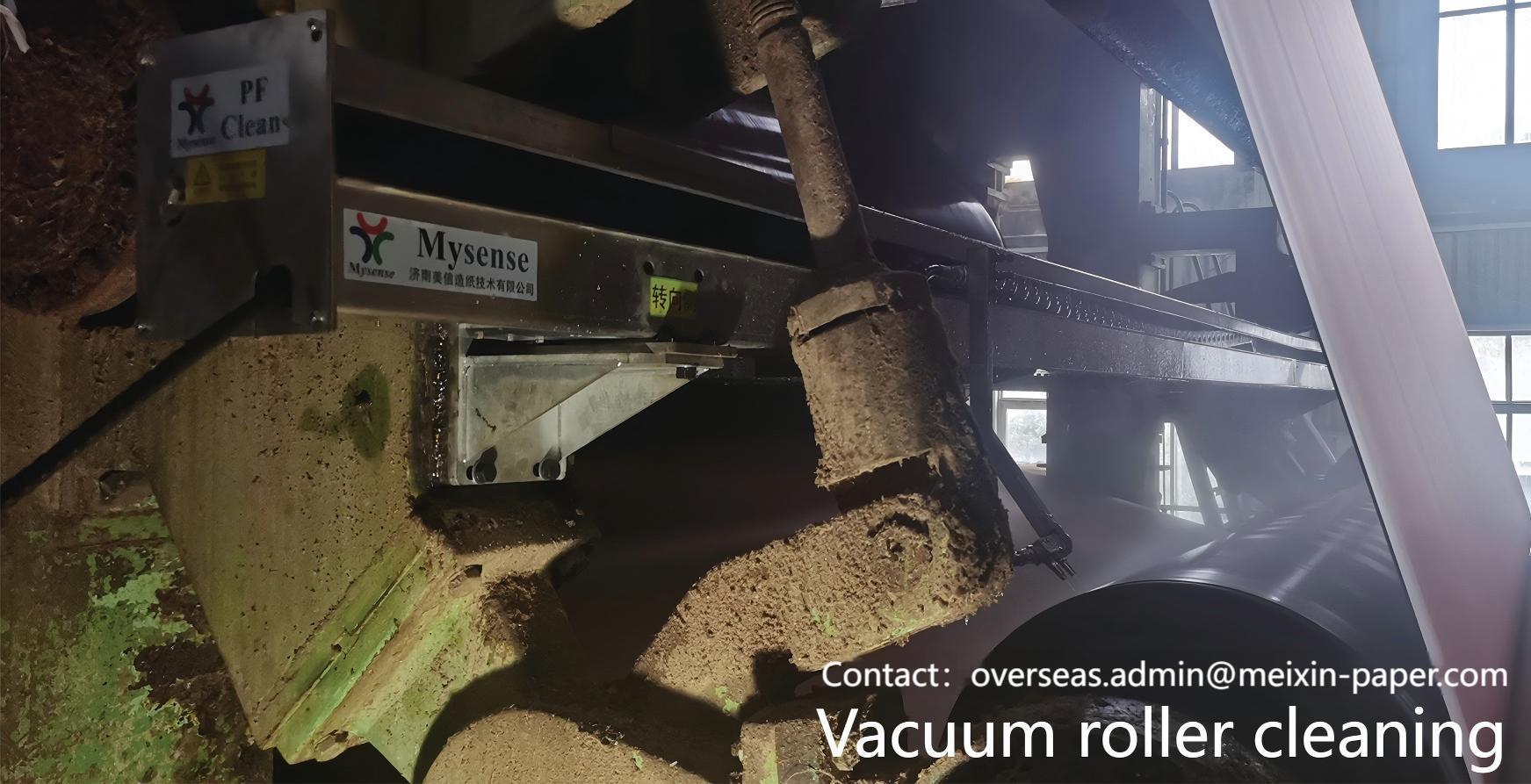

What are the advantages of the Vacuum Roller Cleaning System?

What are the advantages of the Vacuum Roller Cleaning System?

1. During the normal production of the paper machine, the hole of the vacuum roller can be cleaned online. 2. Daily production of the paper machine won’t be influenced by online cleaning. 3. Keep the hole of vacuum roller unblocked and stabilize the production of paper machine. 4. Reduce paper breaking and shutdown maintenance of the paper machine which is caused by the hole blockage of the vacuum roller. 5. Improve running efficiency of paper machine. 6. Thereby the output of paper machine is improved.

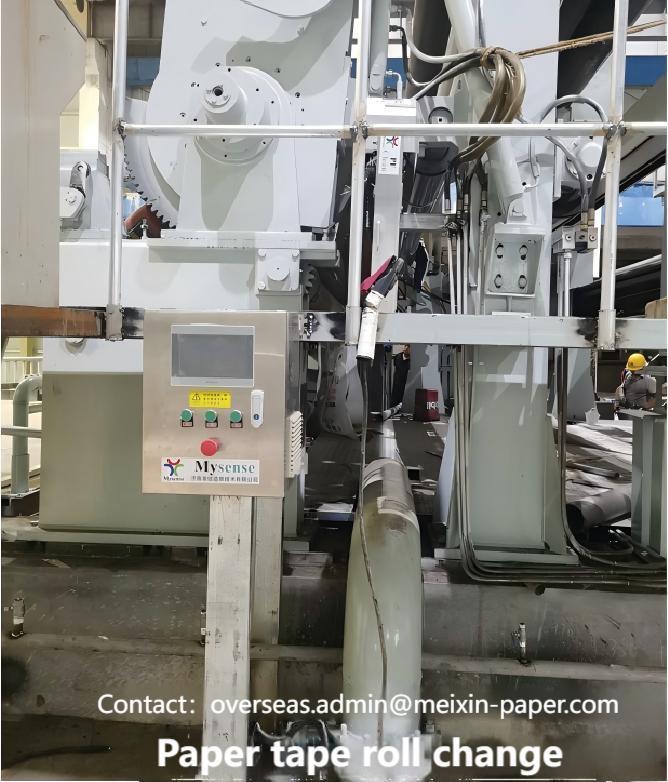

What are the working principle of the Paper Tape Roll Change?

What are the working principle of the Paper Tape Roll Change?

MeiXin Paper Tape Roll Change equipment is composed of four parts: PLC control cabinet, air control cabinet, paper breaking tape box, and automatic paper changing beam. The smart control box and pressure control air box are connected through the power interface. The equipment is equipped with a paper tape transmission device. The paper tape is picked up from the carton and transmitted to the standby position of reel turn up equipment through the track. When the reel turn up signal is received, the paper tape extends from the standby position and is transferred to the new reeling roller. At the same time, the sensor is operated to synchronise the transfer of the sheets to the new roll and the automatic roll change is successfully completed. The reel turn up can be finished instantly, the operation is safe. It saves time, effort and labor, and reduces paper waste.

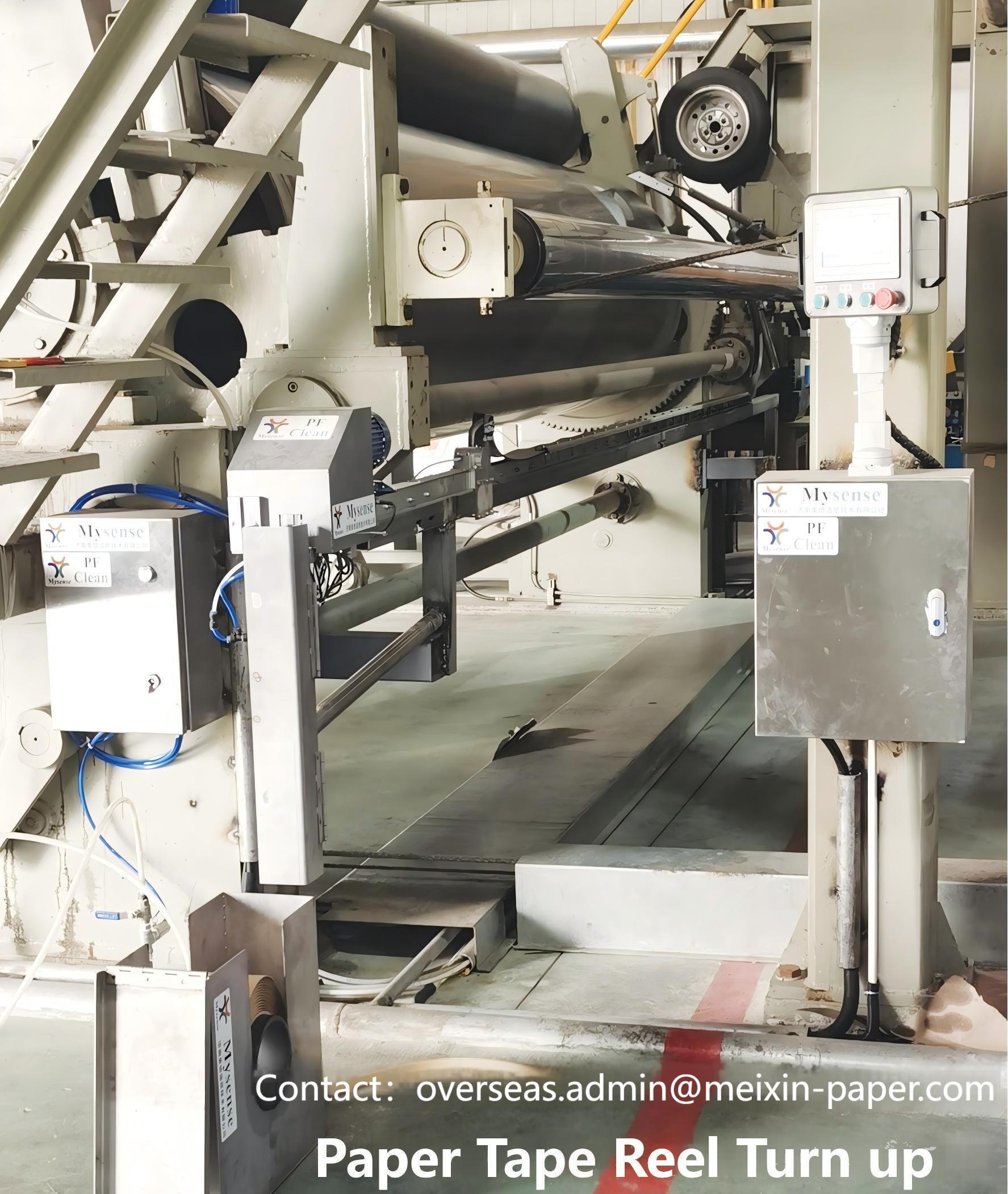

What are the advantages of the Paper Tape Reel Turn Up System?
